To decide on the right solar panel system for your home, review your yearly electricity usage on previous utility bills to get a sense of how much power you use in a year. For most utility bills, kWh used per month is indicated, and this is the essential baseline information for sizing your solar array. Concentrate on peak usage times, often in the summer (when air conditioning usage is high) and the winter (which tends to require more lighting). A robust review would last 12-24 months to accommodate seasonal change. One way to work out what you would need to generate is to take your total consumption per year, divide it by 365 (or divide it by 365.25 here in the Southern Hemisphere) and that gives you an average of what you need per day. Add consideration for your region’s solar irradiance level, which is a measure of how many peak sun hours your panels will get each day. For instance, the southwestern region may have 6-7 hours of peak sun while those in the northeast might get 4-5 hours. Factor in future energy use, like charging your electric vehicle or adding a room to your house, and add a 20%-25% buffer to your calculation. Factor in the panel’s efficiency losses, which can be mitigated by factors such as shade, dust, and heat, but which may reduce output by 15-20%. A detailed analysis will help guarantee that when we install your solar system, it will meet your energy needs now and in the future. Plus, it will provide you with the financial return you want.

When choosing solar panels, homeowners have to contend with three primary types: monocrystalline, polycrystalline, and thin-film panels. Single-crystal silicon monocrystalline panels have the highest efficiency rates of 15-22% and perform better in limited space environments. Polycrystalline panels are a squarer option, are slightly less efficient at around 13-17%, and are much cheaper to produce. Although not as efficient, yielding between 10-12%, thin-film panels provide flexibility for unusual installation needs and perform better in low-light situations.

Panel capacity can be anywhere from 250 to 400 watts per panel, and higher watt panels are becoming more prevalent. Long-term performance is also involved; take degradation rates (0.5-1% per year on average) into account. Seek out panels with Heavy Duty Weather Resistance ratings, specifically for hail impact and wind load performance. The majority of good panel manufacturers will provide a 25-year performance warranty, ensuring the panels are still producing at least 80% of their designed output at the end of the warranty period. The temperature coefficient is also important, as panels are less efficient with excess heat, around 0.3-0.5% per degree Celsius above standard test conditions. Select panels with lower temperature coefficients for warmer climates. Look for certifications like IEC 61215 for checking reliability, UL 1703 to verify safety standards.

The most common type continues to be the roof, providing two types of mounting: flush and tilted systems. The flush mount allows panels to be parallel to the roof surface, which keeps panels from sagging, for safe standing and aesthetics of the system. The tilt mounts give you the best angle to achieve good reception, while the other ones are just an amplified old model that can be stuck on the table, requiring no further assembly or specialized tools, perfect for home use. A good inspection of the roof will be essential before installing: checking whether the surface is sound, compatible from a materials point of view, and whether it is able to bear the weight. Most asphalt shingle roofs can take standard mounting hardware, but metal or tile roofs might require special brackets.

Ground-mounted systems offer a solid alternative to rail mounting systems where, in a specific situation, rail mounting may not be possible because of orientations, shade, or structural constraints. Such systems have superior flexibility in sizing and angle optimization and have the potential to increase energy yield by 15-20%. Installation needs plenty of space – usually about 100 square feet (10 square meters) per kilowatt of system capacity – and research into local zoning rules. When it comes to long-term structural security, a good foundation is key – with concrete footings or driven piles acting as a solid base.

Fixed arrays may be the workhorses of residential arrays, but tracking systems can yield a lot more energy. Single-axis trackers, tracking the sun east to west daily, have a yield gain of 25-35%. Dual-axis systems — accounting for changes in both daily and seasonal solar paths — supply up to 45% more production but require more maintenance. These gains must be balanced against added first costs, greater mechanical complexity, and additional maintenance. Stiff arrays, despite creating less value, are durable, with reduced maintenance requirements.

1) First, get the required permits from your local jurisdiction and submit interconnection applications to the utility. In most localities, there are permits for building, permits for electrical, and permits for the specific installation of solar. Get a professional site inspection to assess the health of the roof, sunlight, and potential shading. Make a list of equipment including the panels, inverters, mounting hardware, and safety equipment. Verify that all parts satisfy local building codes and fire safety codes.

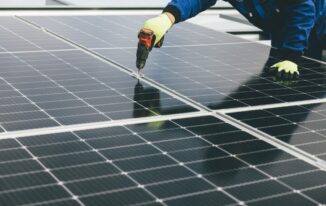

Begin by assembling the mounting system and attaching the feet to the roof every 4-6 feet along the rafter. Attach mounting rails to these attachments, ensuring they are properly aligned and set level. Place a panel, before an ondülasyon, setting microinverters or power optimizers to the rails. Install panels with enough space necessary for ventilation and cleaning, allowing approximately 1-2 inches between panels. Wire panels in series or parallel as per system design, applying the manufacturer’s recommended tightening torque to connections. Fit proper earthing to the whole array.

Work with your utility to add a bi-directional meter so that you can receive credit for your solar production on your bill. Thoroughly test the system from all grounding components including voltages, polarity, and trips on a ground fault breaker. Keep a record of all the test results for warranty regulations and inspection works. Visually inspect all mount points, wiring connections, and weather sealing. Finalize inspection with local authorities and utility personnel. Upon approval, carry out a controlled start-up sequence for the system and monitor initial performance readings to verify correct operation. Finalize paperwork to ensure registration of extended warranties and rebates.

Solar panel efficiency is a constantly evolving conversation, and we can always do better. Frequent shading analysis can help reveal possible obstructions — trim trees and shrubs that are casting shadows on panels, especially during the hours of peak generation. Avoid self-shading by maintaining adequate space between the panels, usually 4 to 6 inches between rows for tilted arrays. For areas with large sun angle changes by seasons, think about mounting systems that can be adjustable around the seasonal months, and a fixed angle would do – steeper (latitude +15 degrees) in December and shallower (latitude -15 degrees) in June. Adopt a quarterly cleaning routine with the use of soft brushes and non-abrasive cleaners to clear dust, pollen, and bird droppings, all of which can decrease solar panel efficiency by up to 5%. Set up monitoring that looks at the real-time generation data to help you identify performance problems quickly. These systems may also be able to identify panel faults, wiring issues, or inverter problems before they severely affect performance. To meet those demands and save the extra energy you produce during the day for nighttime use, many homeowners pair their solar systems with a dependable battery storage solution, such as EcoFlow’s power stations. Perform professional inspections annually to verify electrical connections are secure and there is no visible corrosion. Test the inverter to ensure it is functioning correctly. This full-service maintenance program routinely enhances system performance by 10-15% in comparison to solar installations that aren’t maintained and allows you to maximize returns on your solar energy investment.
